allDrain Percutaneous Nephrostomy Drainage Set-Pigtail

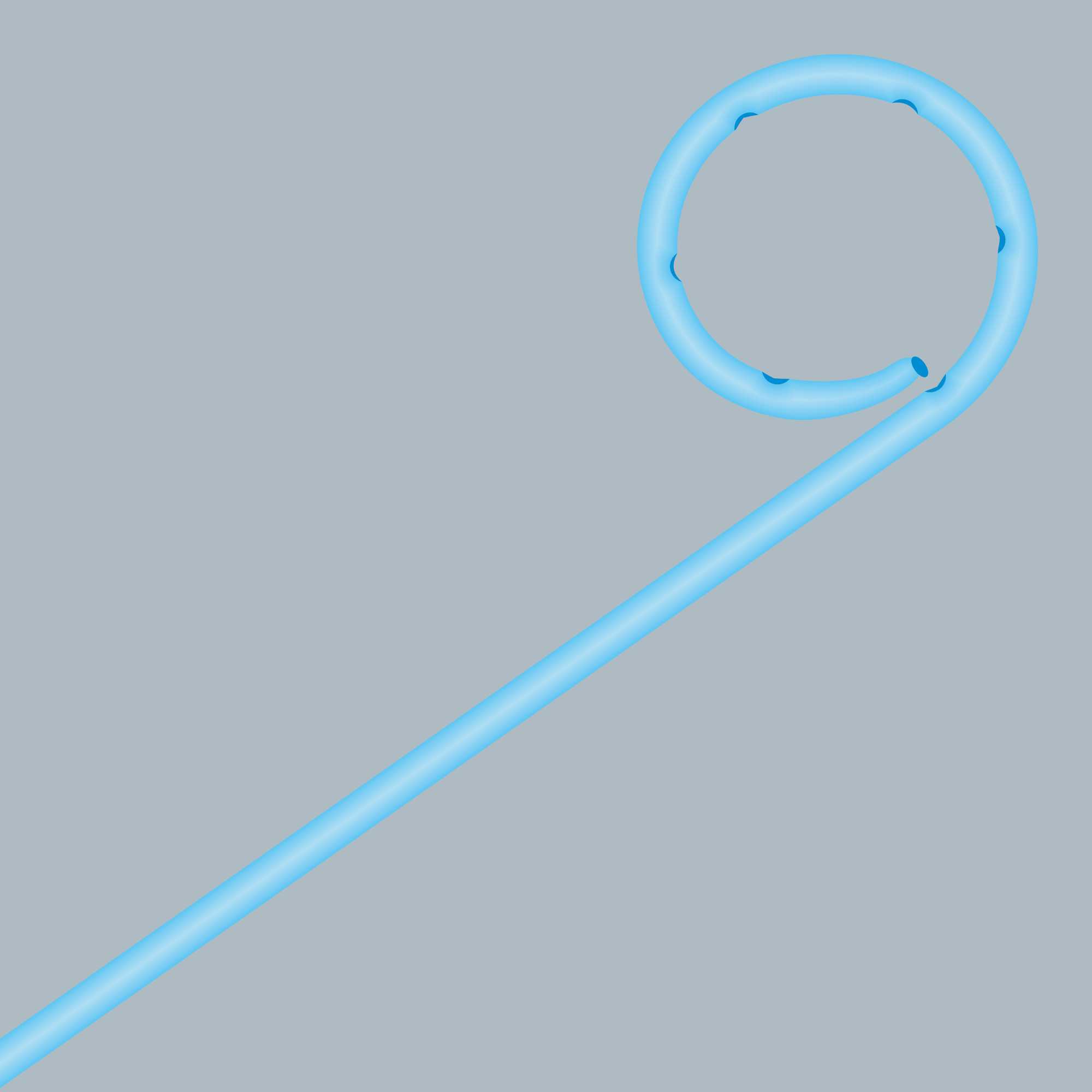

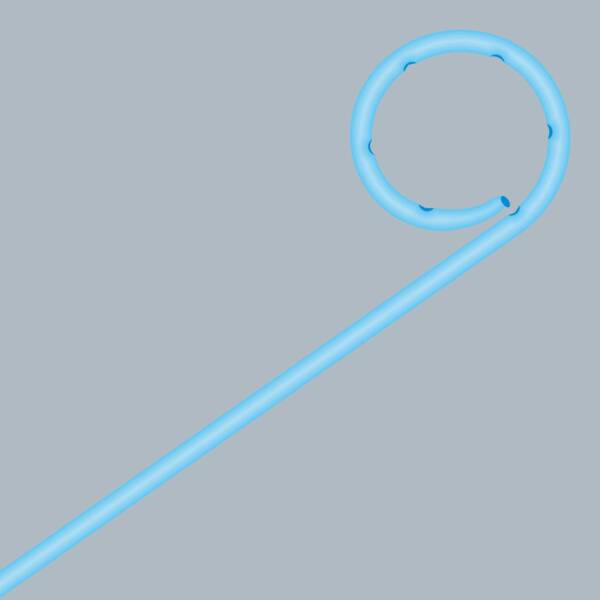

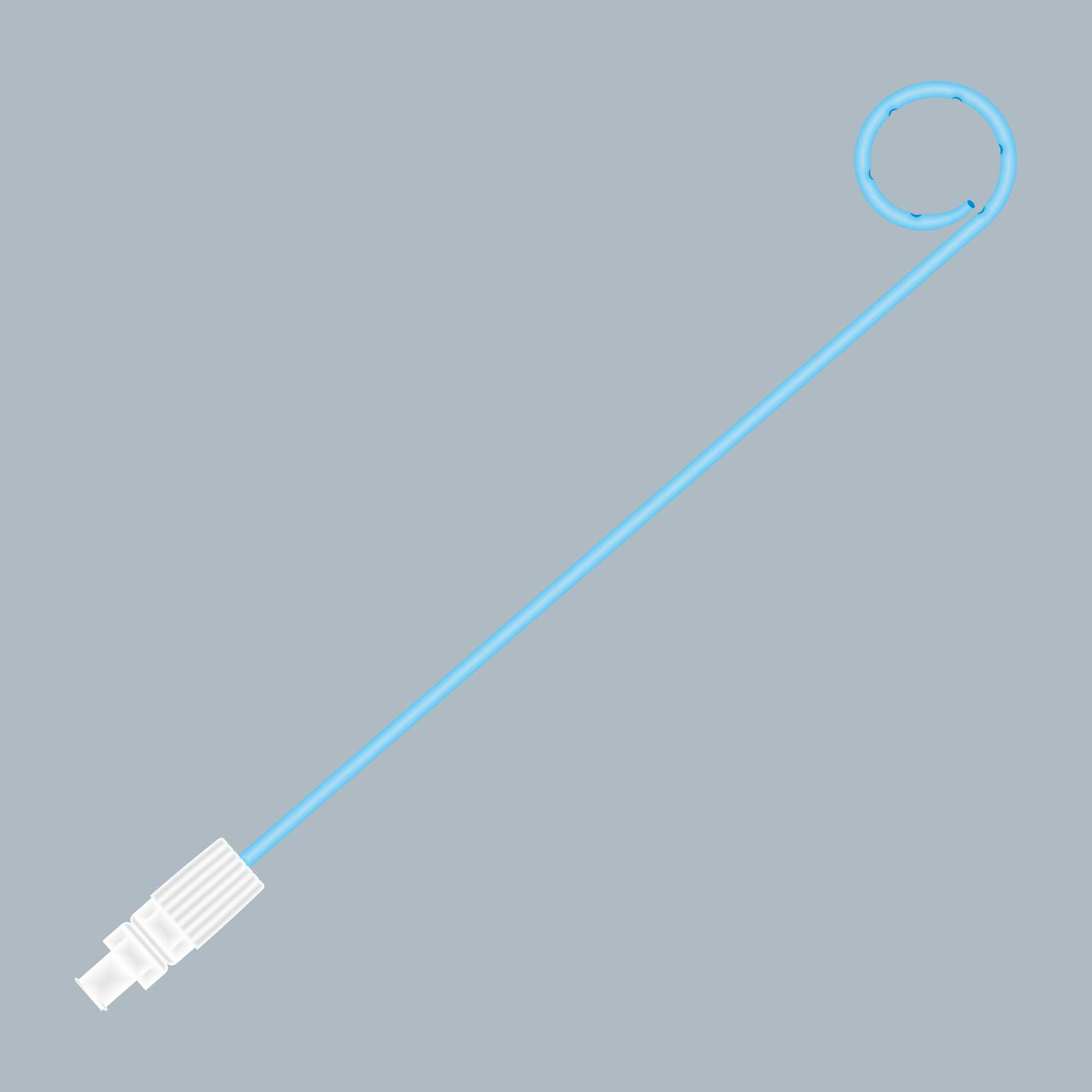

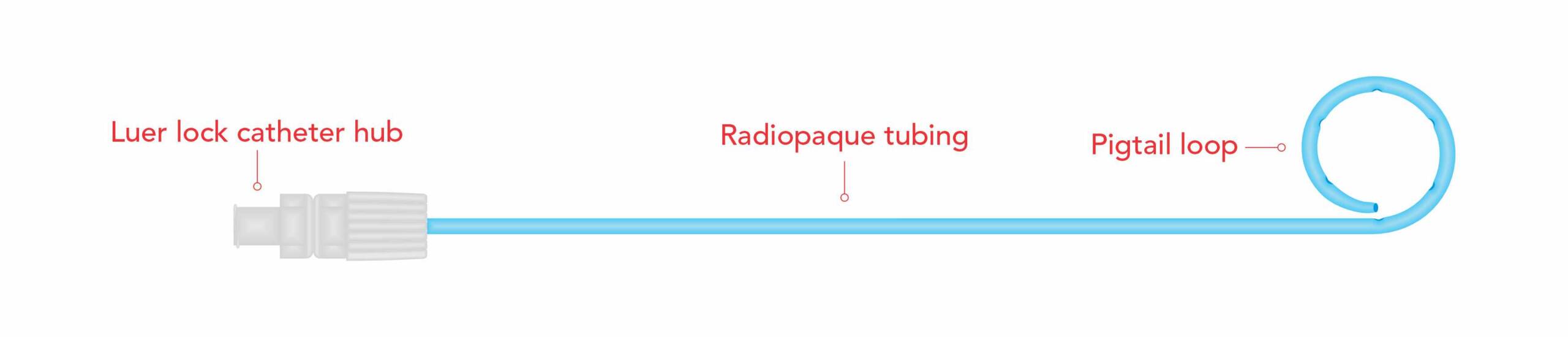

The allDrain Percutaneous Nephrostomy Drainage Set – Pigtail is used for percutaneous placement of a pigtail catheter in the pelvis for nephrostomy drainage.
- Pigtail design helps to secure the position of the catheter
- Polyurethane material provides superior biocompatibility and drainage
- Radiopaque tubing for precise placement
- Locking loop design available for better anchoring
Detailed Image
Specifications
| Order No. | Fr | With Facial Dilators | Qty. / Box |
|---|---|---|---|
| PDS-P7 | 7 | 6, 7, 8 | 1 |
| PDS-P8 | 8 | 7, 8, 9 | 1 |
| PDS-P9 | 9 | 7, 8, 9, 10 | 1 |
| PDS-P10 | 10 | 6, 8, 10, 12 | 1 |
| PDS-P12 | 12 | 6, 8, 10, 12, 14 | 1 |
| PDS-P14 | 14 | 6, 8, 10, 12, 14, 16 | 1 |

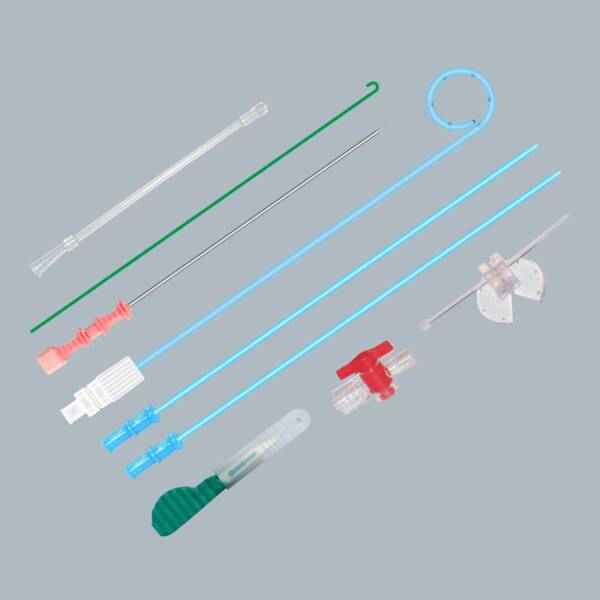

Parts & Accessories
- Initial Puncture Needle - 3 Part
- J Tip fixed core PTEF Coated 0.038” Guidewire
- Fascial Dilators
- Pigtail Drainage Catheter 30 cm
- Urine Bag Connector
- Scalpel
- Catheter Fixing Disk
- Stop Cock
Combinations :
- With Locking Loop System : Add Suffix : LS
- With lunderquist Guidewire instead of PTFE Guidwire : Add Suffix - L
- With Hydrophilic Coating : Add Suffix : H
