U-Flex Ureteral Access Sheath
The U-Flex Ureteral Access Sheath is used to establish a continuous working channel thereby reducing ureteral trauma during multiple instrument exchange.
- Kink resistant sheath with braided design aids in navigation through a tortuous anatomy
- Radiopaque tubing aids in the positioning of the tip of the access sheath under fluoroscopic guidance
- Long tapered dilator for gradual dilation and less trauma to the patient
- Hydrophilic coating for easier insertion of catheter
- Dual latch mechanism holds the sheath & catheter together in a fixed position
- Offered in different sizes on request

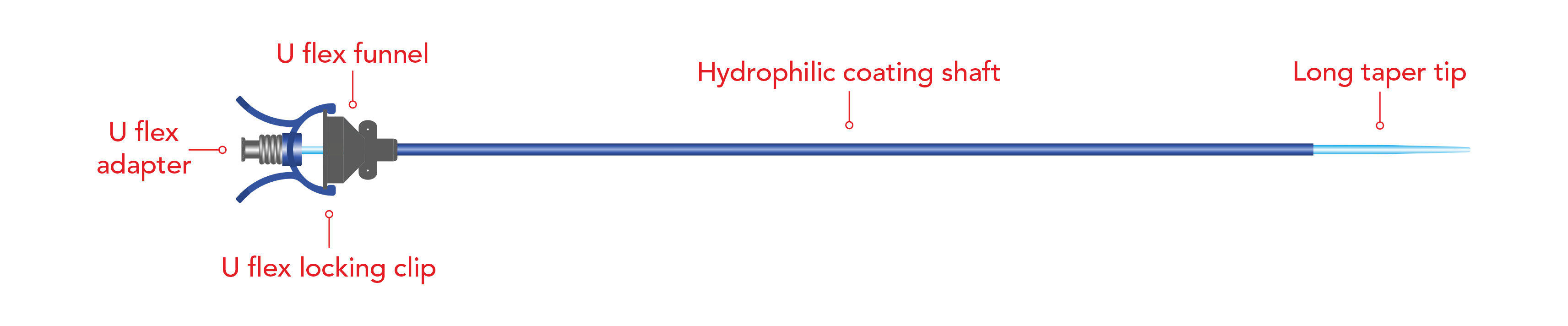

Detailed Image
Specifications
| Order No. | OD | ID | Length (cm) | Qty. / Box |
|---|---|---|---|---|
| UF14/12-24 | 14 Fr | 12 Fr | 24 | 1 |
| UF14/12-38 | 14 Fr | 12 Fr | 38 | 1 |
| UF14/12-45 | 14 Fr | 12 Fr | 45 | 1 |
| UF14/12-54 | 14 Fr | 12 Fr | 54 | 1 |
| UF12.7/10.7-38 | 12.7 Fr | 10.7 Fr | 38 | 1 |
| UF12.7/10.7-45 | 12.7 Fr | 10.7 Fr | 45 | 1 |
| UF12/10-35 | 12 Fr | 10 Fr | 35 | 1 |
| UF12/10-45 | 12 Fr | 10 Fr | 45 | 1 |
| UF12/10-55 | 12 Fr | 10 Fr | 55 | 1 |
| UF11.5/9.5-35 | 11.5 Fr | 9.5 Fr | 35 | 1 |
| UF11.5/9.5-45 | 11.5 Fr | 9.5 Fr | 45 | 1 |
| UF11.5/9.5-55 | 11.5 Fr | 9.5 Fr | 55 | 1 |
Videos
Video coming soon....
Documents
Warning: Undefined array key 2 in /home/ricz8qvvcubw/public_html/wp-content/themes/spock/functions.php on line 1225
U-Flex Ureteral Access Sheath Brochure - USU-Flex-Ureteral-Access-Sheath.pdf
