Ultima Percutaneous Nephrostomy Drainage Sets

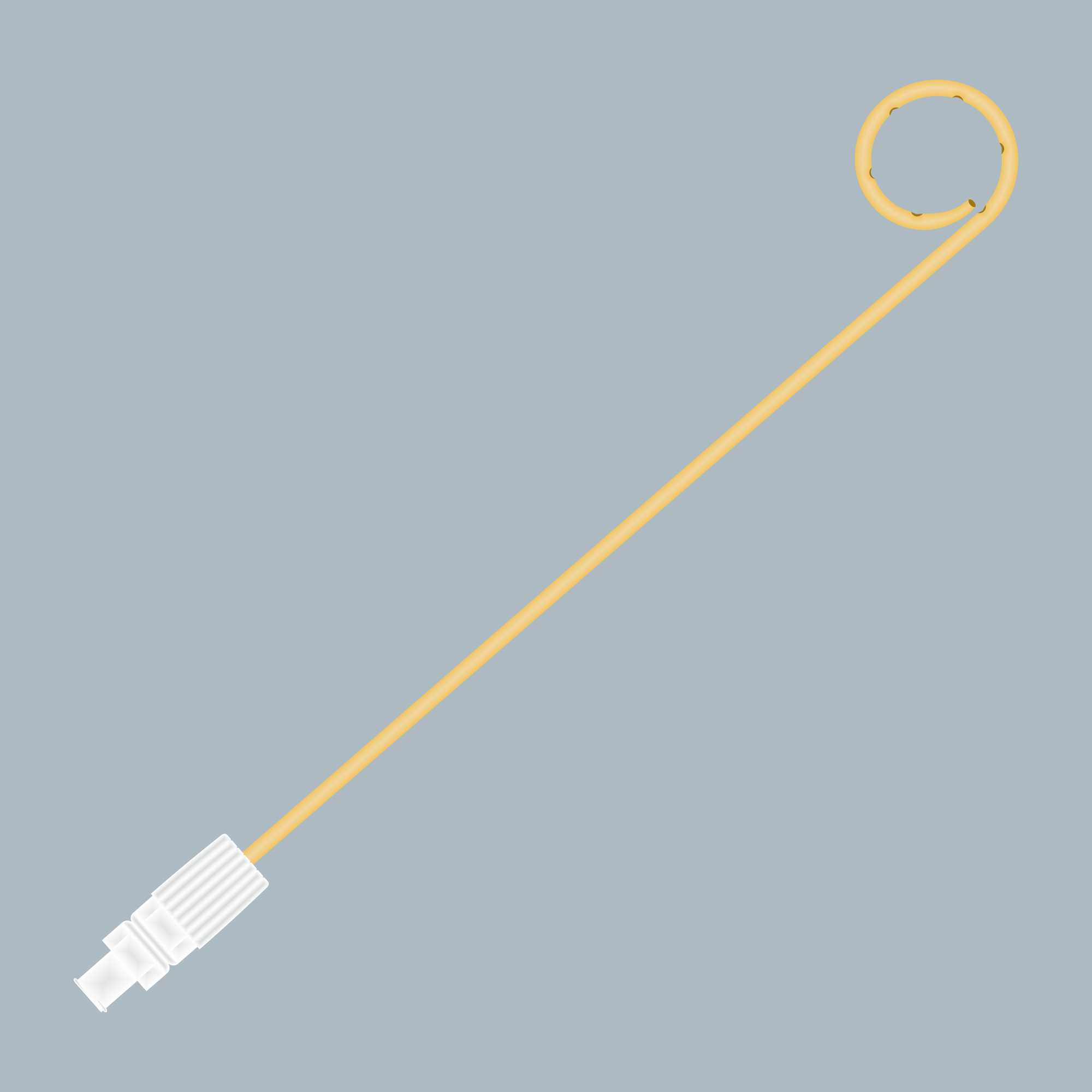

The Ultima Percutaneous Nephrostomy Drainage Set – Pigtail is used for percutaneous placement of a pigtail catheter in the pelvis for nephrostomy drainage.

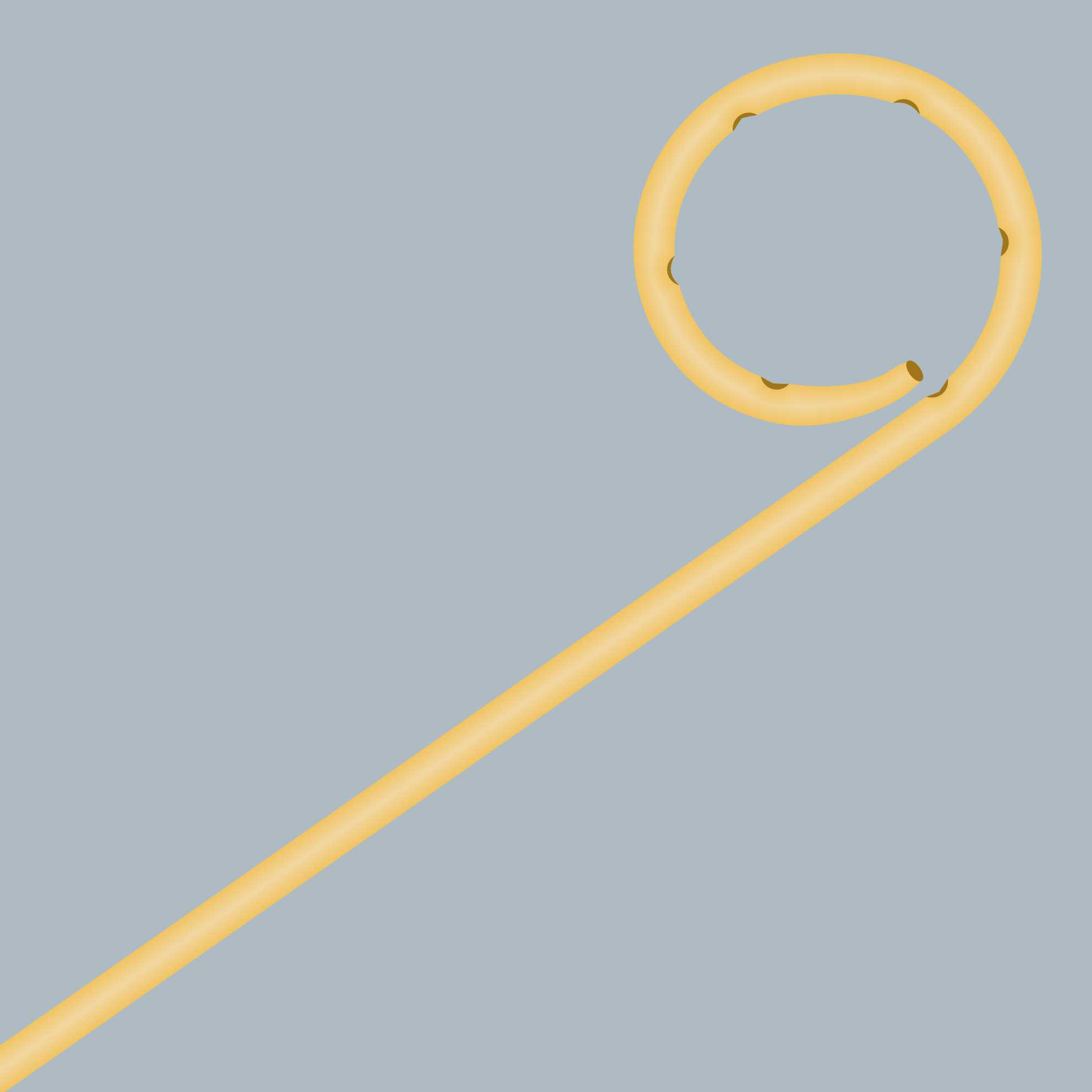

- Pigtail design helps to secure the position of the catheter
- Locking loop design available for better anchoring
- Radiopaque catheter to enable accurate positioning
- Firm polyurethane material provides superior biocompatibility and drainage. It also ensures maximum patient comfort

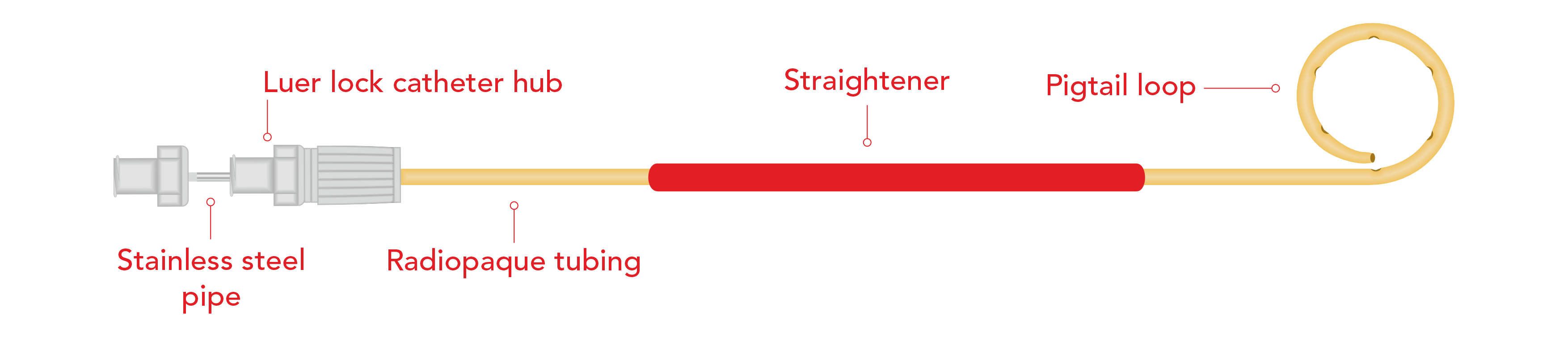

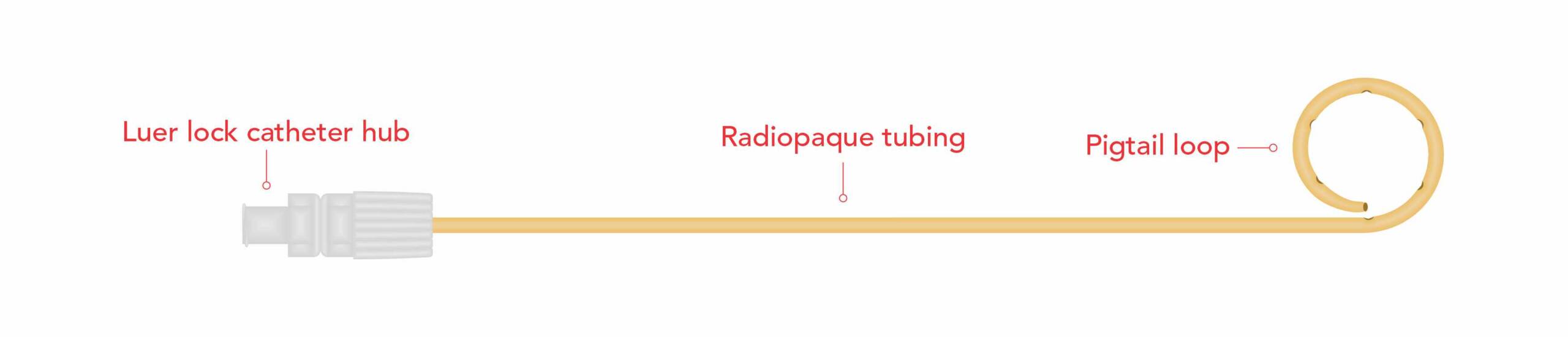

Detailed Image
Specifications
| Order No. | Fr | With Facial Dilators | Qty. / Box |
|---|---|---|---|
| U-PDS-P8 | 8 | 7, 8, 9 | 1 |
| U-PDS-P9 | 9 | 7, 8, 9, 10 | 1 |
| U-PDS-P10 | 10 | 6, 8, 10, 12 | 1 |
| U-PDS-P12 | 12 | 6, 8, 10, 12, 14 | 1 |
| U-PDS-P14 | 14 | 6, 8, 10, 12, 14, 16 | 1 |

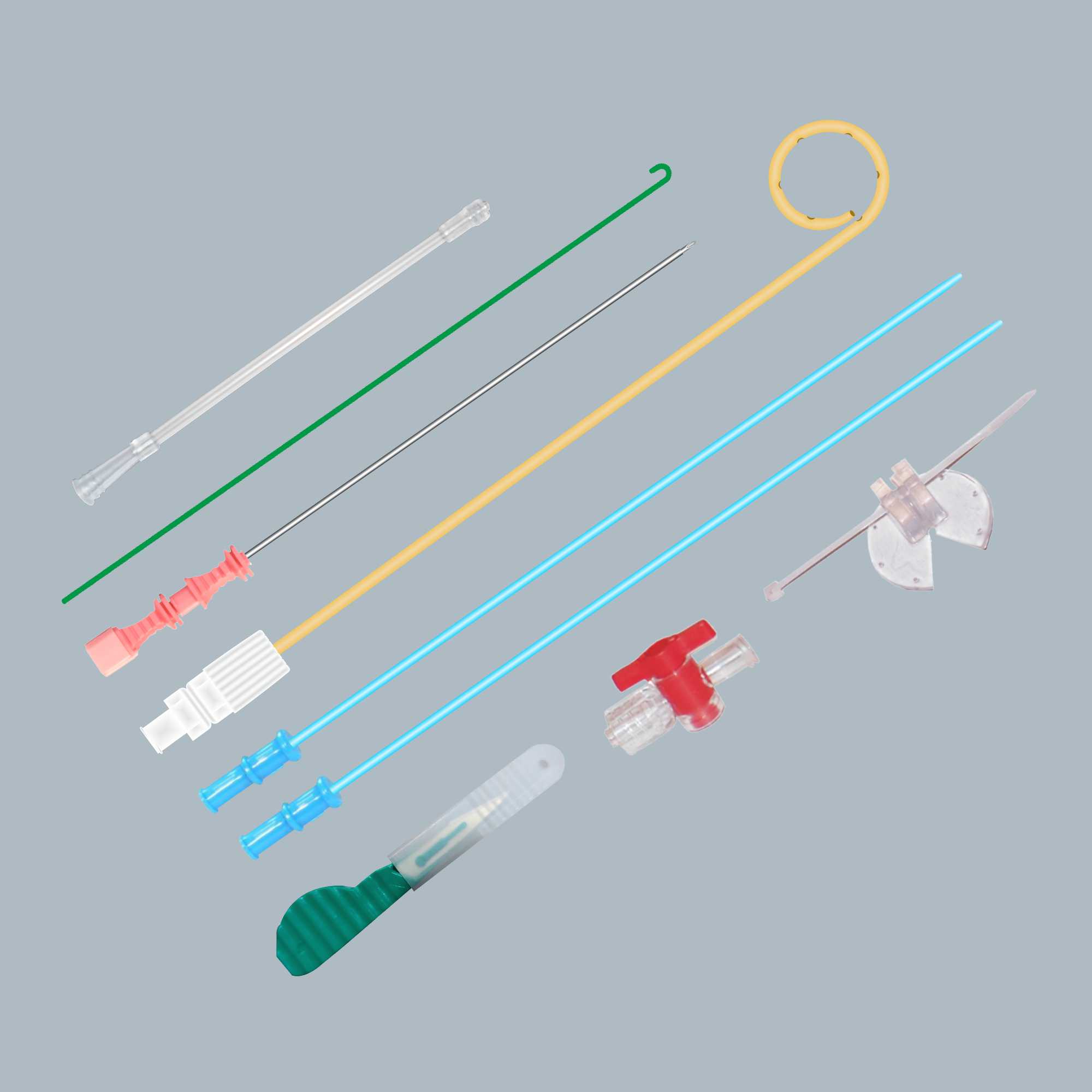

Parts & Accessories
- Ultima Drainage Catheter
- Initial Puncture Needle - 3 Part,
- J Tip fixed core PTFE Coated 0.038” Guidewire
- Fascial Dilators
- Urine Bag Connector
- Scalpel
- Catheter Fixing Disk
- Stopcock
- With Locking Loop System : Add Suffix : LS
- With lunderquist Guidewire instead of PTFE Guidewire : Add Suffix - L
- With Hydrophilic Coating : Add Suffix : H
Videos
Video coming soon....
Documents
Warning: Undefined array key 2 in /home/ricz8qvvcubw/public_html/wp-content/themes/spock/functions.php on line 1225
Ultima Percutaneous Nephrostomy Drainage Set Brochure - USUltima-Percutaneous-Nephrostomy-Drainage-Set.pdf
